ZERO 6KVA Online UPS

Capacity & Efficiency: 6KVA / 5.4kW rated capacity with up to 95% efficiency in Mains mode and 98% in ECO mode
Battery Support: Compatible with both Lithium and Lead-acid 48VDC batteries, featuring custom adjustable charging current up to 60A.
Zero Transfer Time: 0ms transfer time from mains to battery mode, providing uninterrupted power for critical equipment.
Advanced DSP Control: Uses Digital Signal Processing technology for high reliability, precise voltage regulation, and active power factor correction (PFC up to 0.99).
Complete Protection: Features robust protection against short-circuit, overload, over-temperature, battery low-voltage, and reverse battery connection.
Display & Monitoring: Equipped with an LCD+LED interface and standard RS485 / BMS communication ports.
Compact Design: 2U Rack-mounted form factor (442 × 425 × 88.8 mm) weighing just 12 kg.

The ZERO 6KVA is a high-performance, rack-mounted online UPS designed for servers and sensitive equipment. It features advanced DSP control, flexible battery management (Lithium & Lead-acid), 0ms transfer time, and comprehensive electrical protection in a space-saving design

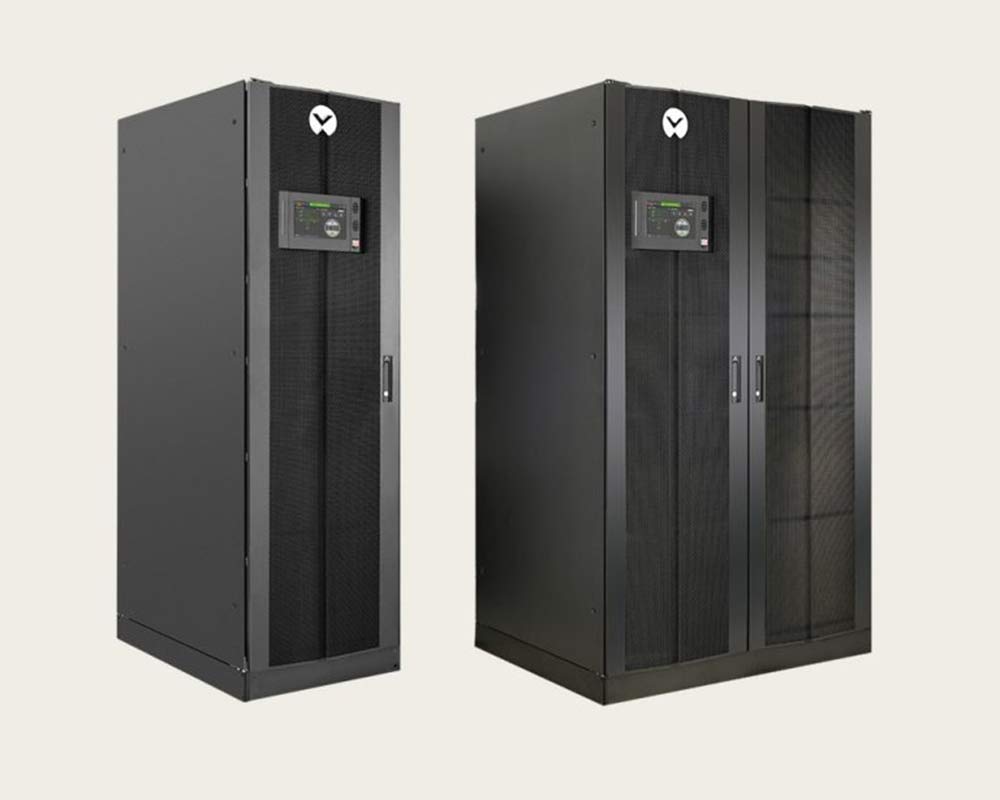

Vertiv™ Liebert® APM2 UPS

Scalable Capacity: Ranges from 30 kW up to 600 kW in a single unit, expandable up to 2.4 MW in parallel configurations.
High Efficiency: Delivers up to 97.5% efficiency in double-conversion mode and up to 98.8% in Dynamic Online mode to reduce operational costs.
Hot-Swappable Design: Power, bypass, and communication modules are easily swappable, ensuring fast maintenance with a low Mean Time to Repair (MTTR < 0.5 hours).
Smart Touchscreen Control: Equipped with a 9-inch full-color touchscreen display (GHMI) for real-time monitoring and diagnostics.
Flexible Battery Compatibility: Supports both traditional VRLA and modern Lithium-ion (Li-ion) battery setups.
Compact Footprint: High power density saves up to 30% of floor space compared to standard alternatives.

Powered by 3-level IGBT topology and Silicon Carbide (SiC) converters, the Liebert® APM2 operates reliably in ambient temperatures up to 50°C. It features advanced backfeed protection, real-time waveform monitoring, and remote diagnostics via Vertiv™ Life™ Services.

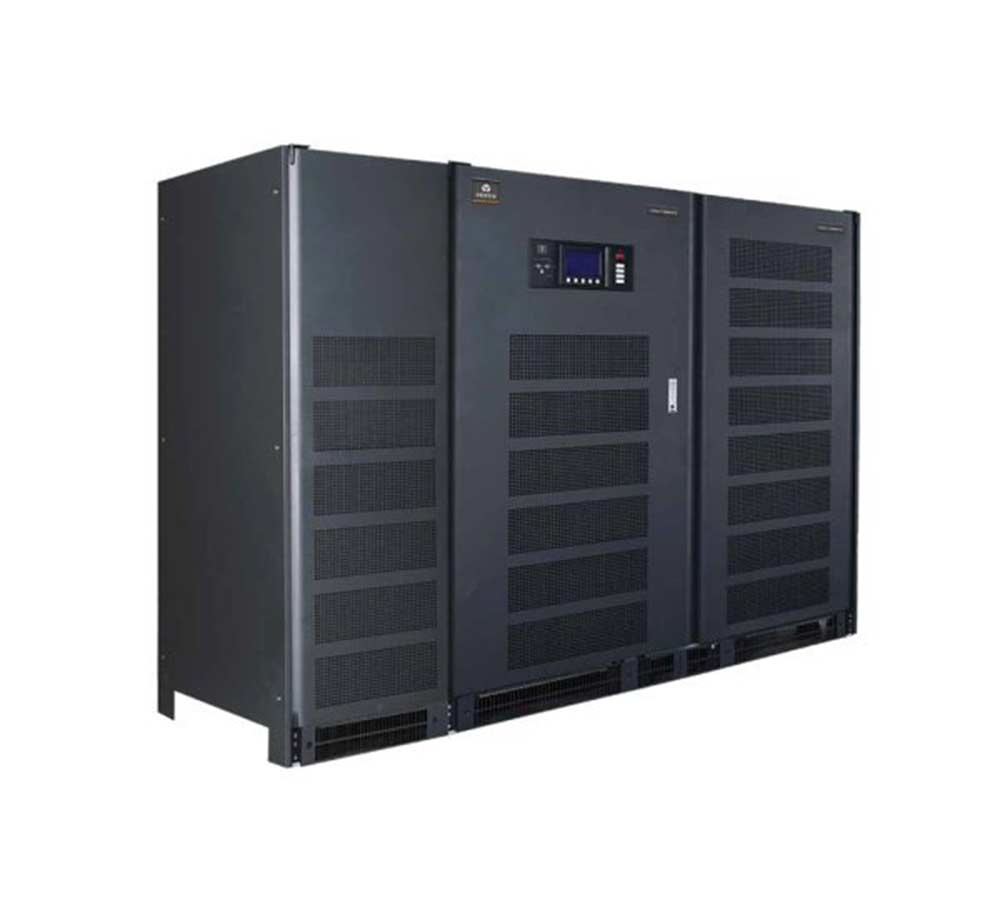

Vertiv Liebert® HIPULSE-UT™ UPS

Twin DSP Digital Control: Built with fully digital twin DSP control and a 0.9 output power factor to deliver more active power.
Wide Input Tolerance: Handles wide input voltage fluctuations (+20% / -20%) and frequency variations (45Hz – 65Hz).
Heavy Load Capability: Fully supports 100% unbalanced loads, high crest factor loads, and 100% non-linear loads.
Complete Investment Protection: Features automatic battery testing, deep discharge prevention, short-circuit protection, and D-level lightning protection.
Parallel Scalability: Supports up to 6 units in parallel (1+N configuration) with hot stand-by and dual-bus compatibility.
Rectifier & Filter Options: Offers a choice of 6 or 12-pulse rectifiers (for 120kVA–500kVA) and optional harmonic filters.
Smart Remote Monitoring: Fully compatible with SNMP, ModBus, and Jbus protocols for web monitoring and Building Management Systems.

The Vertiv Liebert® HIPULSE-UT™ (30kVA–500kVA) is a high-efficiency online double-conversion UPS built for mission-critical applications. Driven by twin DSP controls with a 0.9 output power factor, it offers robust battery protection, flexible parallel scaling up to 6 units, and full BMS integration via SNMP and Modbus. It provides seamless, uninterruptible power for data centers, telecom hubs, healthcare equipment, and industrial setups

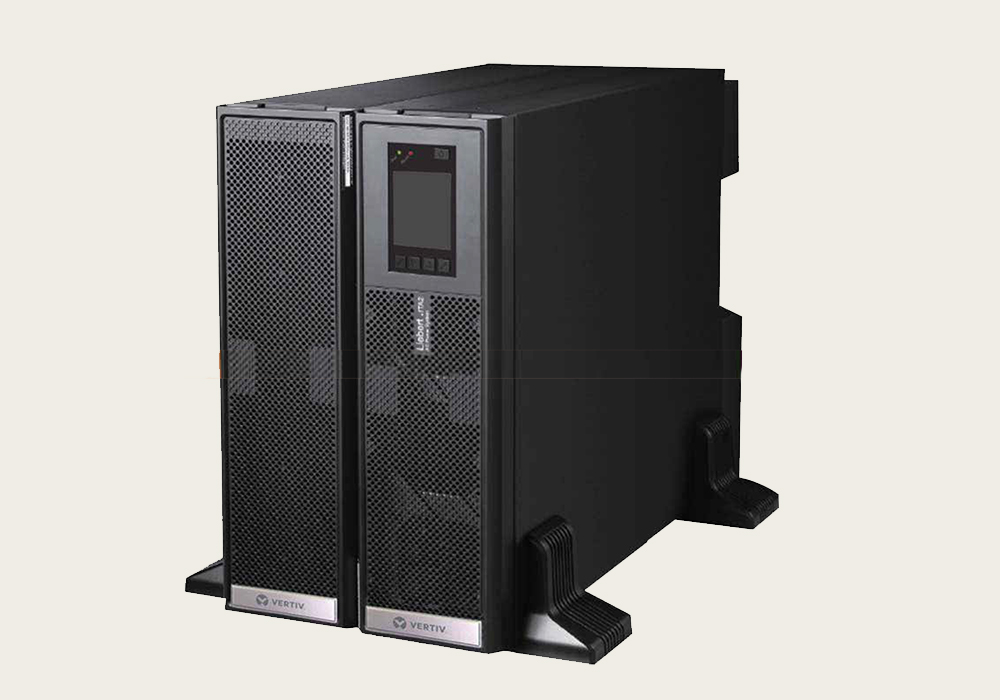

Vertiv Liebert® ITA2™

High Efficiency: Delivers up to 96.5% efficiency in double-conversion mode and up to 99% in ECO mode, significantly lowering operating costs.
Flexible Installation: Rack/Tower convertible design allows seamless integration into standard racks or standalone setups.
Compact Footprint: Saves up to 35% rack space compared to traditional UPS models
Robust & Environment-Resistant: Built with a dust-resistant design, high-temperature tolerance (operates up to 50°C), and certified for seismic, high altitude, and vehicle transportation conditions.
Smart Monitoring: Integrated Ethernet port supporting remote management via HTTP and compatibility with monitoring software such as Trellis™ Power Insight.

The Vertiv Liebert® ITA2™ is a digital, high-efficiency, double-conversion online Uninterruptible Power Supply (UPS) system ranging from 5 to 30 kVA. It provides clean, continuous power protection for critical infrastructure across diverse IT and industrial environments
